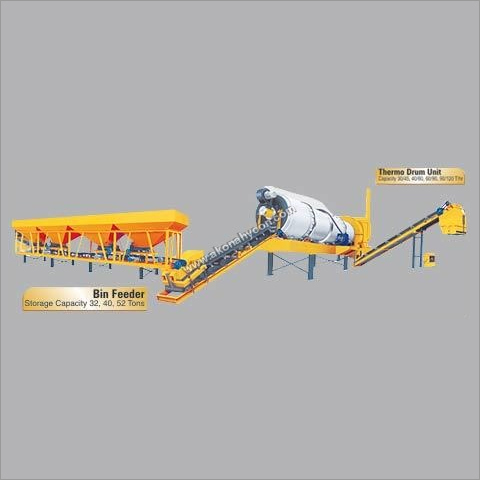

Hot Mix Plant

Hot Mix Plant
Hot Mix Plant
Product Code : 20
Brand Name : AKONA ENGINEERING
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
Product Description

Ours is an illustrious organization that is engaged in manufacturing, supplying and exporting superior quality Hot Mix Plant. These plants are manufactured using high quality components that are sourced from vendors of high repute. Our Hot Mix Plant can be customized on the basis of the variegated requirements detailed by our esteemed customers at nominal rates.

Bin Feeder  It is of single chassis construction. At each Bin a radial gate is provided which can be opened in any position to regulate the aggregate flow. Individual endless belts are provided below the gates to discharge material onto the gathering belt.

Dryer Drum The dryer is accurately fabricated to ensure proper heating of aggregates with minimum heat loss. Specially designed flights lift and cascade the aggregate to reduce the final moisture content to 0.5% (by weight). It is supported on steel rollers through steel tyres with idlers and guide rollers and is provided with segmented driving sprocket. A fully automatic high-pressure auto jet burner is mounted at one end of the drum. The discharge chute design discharges heated aggregate directly onto the loadout conveyor.

Bitumen Tanks  One/Two Bitumen Tanks of 15/20 MT. capacity each are provided, fabricated from steel plates with 50 mm glasswool insulation, manhole, thermocouples, etc. Bitumen is pumped to the dryer drum through pipe lines. Tanks are fitted with independent on-off type burners.

Technical Data:

Bin feeder Thermo Drum Unit
Storage Capacity Capacity
32 : 40 : 52 Tons 30/45 : 40/60 : 60/90 : 90/120 : T hr.

Attributes and Specification:

1. Four Bin Feeder fitted with variable speed motors and Gear Box.
2. Slinger Conveyor for feeding cold aggregates into the dryer drum.
3. Multi-cyclone exhaust system.
4. Hot conveyor fitted with gob hopper for discharging hot mix material onto tipper truck.
5. Mineral Filler fitted with rotary and blower
6. Glass Wool insulated bitumen (asphalt) tank fitted with burner and bitumen pump station.
7. Fuel Storage tank.
8. Fully automatic control panel with control Cabin.
9. With 2 No. bitumen tank capacity 15000 ltr.

  • All components used in asphalt mix plant are of top quality, with ISI Certification wherever available.
  • All moving parts and electrical parts of asphalt mix plant are provided with safety covers.
  • Ease of lubrication and dismantling has been built into the design for efficient maintenance and repair.
  • Fabricated parts of asphalt mix plant are thoroughly cleaned and treated before painting.
  • Manufacturing of asphalt mix plant is done with advanced, internationally recognised techniques.
Trade Information
  • Payment Terms
  • Cheque, Others
  • Delivery Time
  • 7 Days
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
